Specification

Temperature Range
Transport/Storage Temp Installation Temp Operation Temp
-40℃~+70℃ -30℃~+50℃ -40℃~+70℃


Structural Characteristic
Fiber Count 2~288
Loose Tube Colored Fiber In Pbt Loose Tube, Filled With Fiber Gel
Central Strength Member Steel Wire Or Frp(Fiber Reinforce Plastic Rod)
Waterproof Layer Cable Core Filled With Cable Gel Or Water Blocking Tape, Water Blocking Yarns
Double Sheaths Enhance The Pressure Resistance, Shot-Proof Performance And Moisture Resistance Of The Cable.
Sheath Polyethylene(PE)

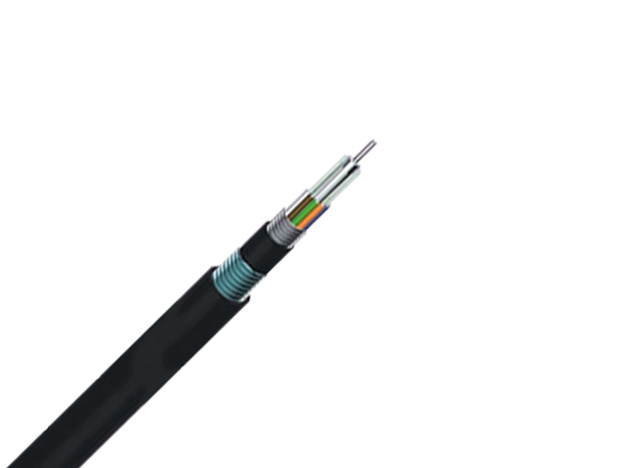

Technical Data(GYFTA53)
Fiber Count Cable Outer Dia (Mm) Cable Weight (Kg/Km) Min.Bending Radius(Mm) Permissible Tensile Force(n) Permissible Pressure Force(n/100mm)
Static Dynamic Short Term Long Term Short Term Long Term
2-36 13.7 180 12.5d 25d 3000 1000 3000 1000
38-72 14.3 195 12.5d 25d 3000 1000 3000 1000
74-84 15 215 12.5d 25d 3000 1000 3000 1000
86-96 15.6 235 12.5d 25d 3000 1000 3000 1000
98-108 16.3 260 12.5d 25d 3000 1000 3000 1000
132-144 18.5 330 12.5d 25d 3000 1000 3000 1000
288 21.6 442 12.5d 25d 3000 1000 3000 1000
Note:"d" Is Cable Diameter
