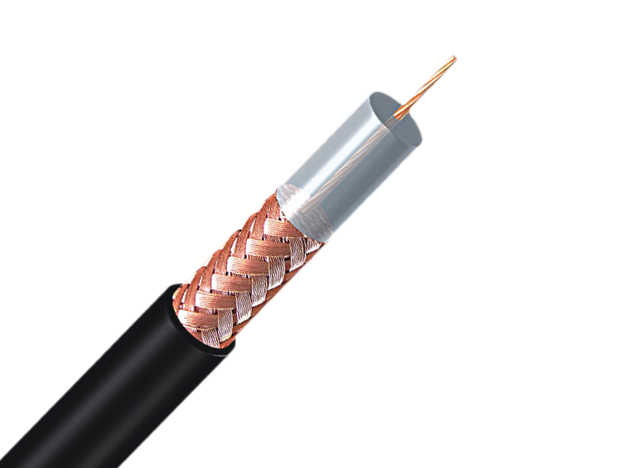

RG213 RG214 Cable

RG213 RG214 is mainly used in data transmission, security signal transmission.

1.Package: empty rolls, wooden and plastic trays

2. Certificate: CE ROHS ETL UL CPR

3. Free samples

4. Provide test report

5. Stable quality, complete testing equipment

Specification

Basic Construction
RG213 RG214
Conductor Material BC TC
Nom.Dia. 13awg/7*0.75mm 13awg/7*0.75mm
Dielectric Material PE PE
Nom.Dia. 7.24mm 7.25mm
Shield Material BC Brdiding TC Brdiding
Coverage 96% 96%-98%
Jacket Material PVC/PE PVC/PE
Nom.Thick. ≥1.0mm ≥1.0mm
Nom.Dia. 10.3mm±0.10mm 10.80mm±0.10mm


Basic Characteristics
Nominal Impedance(Ohm) 50±2 50±2
Nominal Velocity Of Propagation(%) 66 66
Nominal Capacitance(Pf/m) 100 100
Sparker Test(Vac) 5000 5000
Srl(Db) 50-1000 20 20
1000-3000 20 20
Attenuation
[68° f(20℃)]
Frequency(Mhz) Maximum(Db/100ft) Maximum(Db/100m)
10 0.55 6.20 1.80 2.03
50 1.34 1.50 4.40 4.92
100 2.07 2.10 6.80 6.90
200 2.96 2.99 9.70 9.80
400 4.61 4.79 15.10 15.70
500 4.94 4.97 16.20 16.30
600 / 5.67 / 18.60
800 6.56 7.02 21.50 23.00
1000 7.47 8.20 24.50 26.90
