XF-SASC-10022
-
1.Model:Security Cable shielded
-
2.Categories:security alarm cable
-
3.Certificates:UL, ETL, CE,CPR, RoHS
-
4.Length:100m,305m,500m,500ft,1000ft
-
5.Packing:pull box, wooden spool, carton, pallet
-
6.MOQ:10KM
-
7.Delivery time:Normally 15 working days
-
8.Port of Loading:NINGBO, SHANGHAI
-
9.Term of payment:T/T, L/C at sight, D/P at sight
Product info
XF-SASC-10022

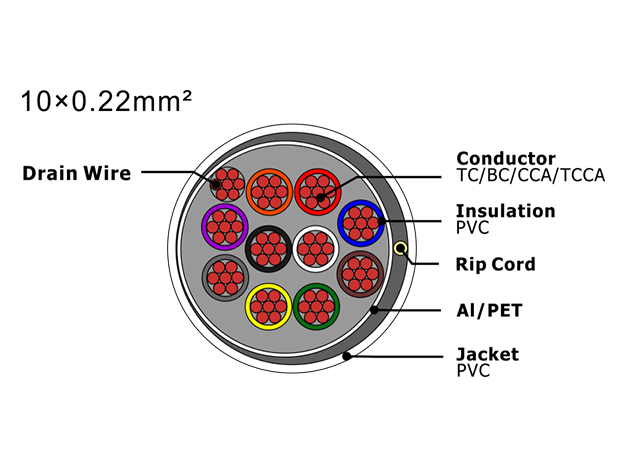

10×0.22mm² Security Alarm Cable
Conductor: Stranded or solid Conductor Material: Copper, Tinned Copper, CCA, TCCA
Insulation: PVC Drain Wire: Stranded or solid Rip Cord Jacket: PVC White or as customers need
Specification
|
Conductor: |
|||||||
|
10×(7/0.20mm)TC/BC/CCA/TCCA |
|||||||
|
Dielectric: |
|||||||
|
Type |
PVC |
||||||
|
Diameter |
0.95mm |
||||||
|
Color Code: |
1.black |
2.Red |
3.yellow |
4.green |
5.brown |
6.blue |
|
|
7.White |
8.orange |
9.Purple |
10.Grey |
|
|
||
|
Shield: |
Aluminum Foil |
||||||
|
Drain Wire: |
7 x 0.20mm (TC/BC/CCA/TCCA) |
||||||
|
Rip Cord: |
Cotton Wire |
||||||
|
Jacket: |
Type |
PVC |
|||||
|
Diameter |
5.30mm |
||||||
Electrical Properties :
|
Temperature Rating |
（-20℃ ~ +60℃） |
|
Operating Voltage |
300 Volts max |
|
Capacitance |
45pf/ft nom. |
|
Impedance |
40 Ohms nom. |
|
DC Resistance |
16.5 Ohms/M' at 20℃ |
Order Informations :
|
Package |
Inquired Length on Reel,Pull Box,Plastic Spool,Wooden Spool,Pallet |
|
Delivery time |
Normally 15 days after received the deposit. |
