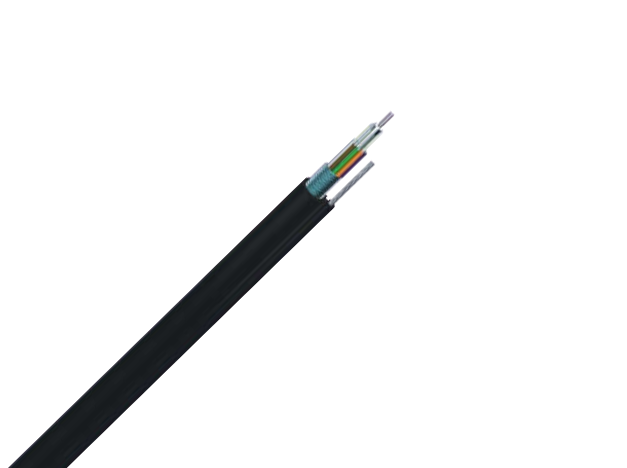

GYTC8A

Optical cables are mainly used in the transmission of optical signals in telecommunications networks

1. Package: wood drum

2. Certificate: CE ROHS ETL UL CPR

3. Free samples

4. Provide test report

5. Stable quality, complete testing equipment

Specification

Temperature Range
Transport/Storage Temp Installation Temp Operation Temp
-40℃~+70℃ -30℃~+50℃ -40℃~+70℃


Structural Characteristic
Fiber Count 2~288
Loose Tube Colored Fiber In Pbt Loose Tube, Filled With Fiber Gel
Central Strength Member Steel Wire Or Frp(Fiber Reinforce Plastic Rod)
Waterproof Layer Cable Core Filled With Cable Gel Or Water Blocking Tape, Water Blocking Yarns
Messenger Wire Single Steel Wire Or Stranded Steel Wire
Corrugated Aluminum-Plastic Tape Enhances Cable's Moisture Proof Performance And Ensure Cable's Flexibility And Anti-Bending Capability.
Sheath Polyethylene(PE)


Technical Data(Gyftc8a 7×1.0mm Messenger Wire)
Fiber Count Cable Outer Dia (Mm) Cable Weight (Kg/Km) Min.Bending Radius(Mm) Permissible Tensile Force(n) Permissible Pressure Force(n/100mm)
Static Dynamic Short Term Long Term Short Term Long Term
2-36 10.5*17.9 155 10d 20d 6000 3000 1000 300
38-72 11.1*18.5 168 10d 20d 6000 3000 1000 300
74-84 11.9*19.3 182 10d 20d 6000 3000 1000 300
86-96 12.5*19.9 195 10d 20d 6000 3000 1000 300
98-108 13.2*20.6 208 10d 20d 6000 3000 1000 300
132-144 15.3*22.7 255 10d 20d 6000 3000 1000 300
Note:"d" Is Cable Diameter
