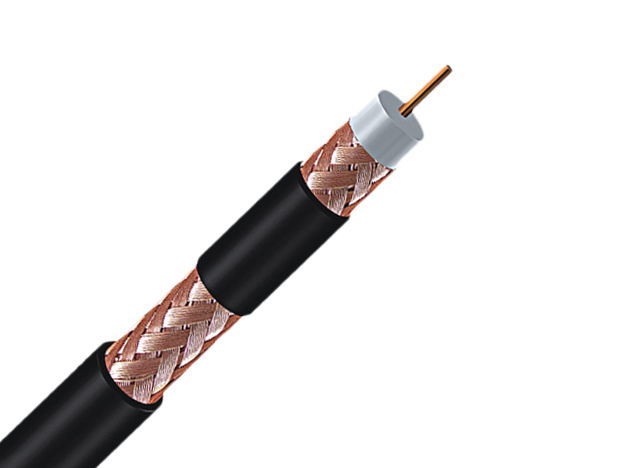

17/19/21 VATC cable is mainly used in cable TV and satellite receiving systems.

1. Package: empty rolls, wooden and plastic trays, and pull -boxes.

2. Certificate: CE ROHS ETL UL CPR

3. Free samples

4. Provide test report

5. Stable quality, complete testing equipment

Specification

Basic Construction

		17VATC/PATC/VRTC	19VATC/PATC/VRTC	21VATC/PATC/VRTC
Conductor	Material	BC	BC/CCS	BC/CCS
Conductor	Nom.Dia.	1.13mm	1.02mm	1.25±0.01mm
Dielectric	Material	Foam PE	Foam PE	Foam PE
Dielectric	Nom.Dia.	4.85mm	4.70mm	5.50±0.10mm
Shield	Material	Al Foil/Cu Foil+Bc Braiding	Al Foil+Tc Braiding+Al Foil Cu Foil+Tc Braiding+Cu Foil
Shield	Coverage	35%-90%	35%-90%	35%-90%
Jacket	Material	PVC/PE	PVC/PE	Pvc/Pe
	Nom.Thick.	0.8mm	0.8mm	0.8mm
	Nom.Dia.	6.8mm	6.7mm	6.8mm

Basic Characteristics

Nominal Impedance(Ohm)		75±3		75±3		75±3
Nominal Velocity Of Propagation(%)		83		85		85
Nominal Capacitance(Pf/m)		52		52		52
Sparker Test(Vac)		3000		3000		3000
Srl(Db)		20		20		20
Attenuation [68°f(20℃)]	Frequency(Mhz)	Maximum(Db/100ft)			Maximum(Db/100m)
	5	0.48	0.58	0.58	1.6	1.90	1.90
	50	1.4	1.80	1.80	4.6	4.80	4.80
	100	1.98	1.98	1.98	6.5	6.50	6.50
	200	2.9	2.90	2.90	9.5	9.50	9.50
	400	3.66	3.97	3.97	12	13	13
	800	5.34	5.80	5.80	17.5	19	19
	950	5.86	6.31	6.31	19.2	20.7	20.7
	1000	6.13	6.56	6.56	20.1	21.5	21.5
