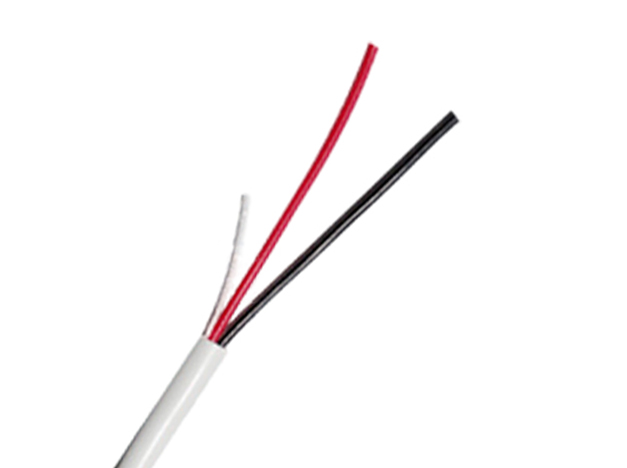

XF-A-2022 unshield


1.Model:UL Fire alarm cable - MD

2.Categories:Fire Alarm Cable

3.Certificates:UL, ETL, CE,CPR, RoHS

4.Length:100m,500m,500ft,1000ft

5.Packing:roll, wooden spool, carton, pallet

6.MOQ:10KM

7.Delivery time:Normally 15 working days

8.Port of Loading:NINGBO, SHANGHAI

9.Term of payment:T/T, L/C at sight, D/P at sight






Product info



Construction

Structure

2*0.22 ( 7*0.2) unshielded

Conductor

CCA (TC,BC,TCCA are available)

Cross sectional area of core

0.22 sq.mm

Cable core

2C

Diameter of core section

0.52 mm

Insulation

PVC

Drain wire

yes

Rip cord

yes

Shield

no

Jacket

PVC

Application:
These cables are used for installation in telecommunication, intercom,signaling and alarm system.
This is suitable for the connection of contacts, detectors and sensors,
infra-red as well as micro wave or mixed technology systems to the switchboard .

Standard packing:
100m/roll, 100m/box ; 100m/plastic spool; 300m/wooden spool

Item No.

Description

Conductor
Spec.

Insulation

Jacket

Packing

Nom.Thick(mm)

Nom.Diam.(mm)

Nom.Thick(mm)

Nom.Diam.
(mm)



XF-A-2022 unshield

TC/BC/CCA/T  CCA
Screened
Unscreened
Rip cord or No
Drain wire or No

2*7*0.2/0.22

1.5

1.05

0.5

3.1

Box
Coil
Drum
Paper reel
Plastic reel
Wooden reel

4*7*0.2/0.22

1.5

1.05

0.5

3.4

6*7*0.2/0.22

1.5

1.05

0.6

4.1

8*7*0.2/0.22

1.5

1.05

0.6

4.5

10*7*0.2/0.22

1.5

1.05

0.7

5.1

12*7*0.2/0.22

1.5

1.05

0.7

5.5

20*7*0.2/0.22

1.5

1.05

0.7

7.2

Key Features
These products are solid conductor or multi conductor cables that come in a shielded and unshielded version.
The variations are PVC, Plenum, shielded and unshielded which automatically puts this cable in at least
4 types of different applications. Standard ways of asking for it would be fire alarm cable, shielded fire alarm cable, FPLR cable
and FPLP cable which stated for Riser and Plenum.
Applications
▶ Hotels ▶ Theatres and cinemas ▶ Museums ▶ Hospitals ▶ Shopping centres
▶ Skyscrapers ▶ Offices ▶ Schools ▶ Airports ▶ Undergrounds and tunnels
▶ Railways stations ▶ Computer centres ▶ Alarm systems ▶ Traffic control systems
▶ Fire fighting system
