Security Alarm Cable

  • 1.Model:Security Cable shielded

  • 2.Categories:security alarm cable

  • 3.Certificates:UL, ETL, CE,CPR, RoHS

  • 4.Length:100m,305m,500m,500ft,1000ft

  • 5.Packing:pull box, wooden spool, carton, pallet

  • 6.MOQ:10KM

  • 7.Delivery time:Normally 15 working days

  • 8.Port of Loading:NINGBO, SHANGHAI

  • 9.Term of payment:T/T, L/C at sight, D/P at sight

Product info

XF-SASC-2022

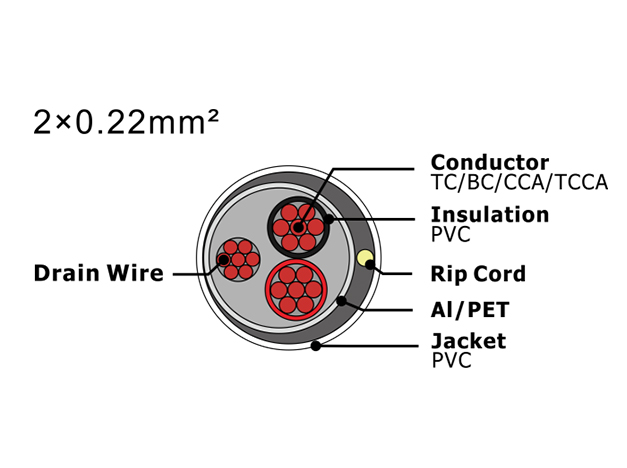

2×0.22mm² Security Alarm Cable

Conductor: Stranded or solid Conductor Material: Copper, Tinned Copper, CCA, TCCA

Insulation: PVC Drain Wire: Stranded or solid Rip Cord Jacket: PVC White or as customers need



Specification


Conductor:

2×(7/0.20mm)TC/BC/CCA/TCCA

Dielectric:

Type

PVC

Diameter

0.95mm

Color Code:

1.black

2.Red











Shield:

Aluminum Foil

Drain Wire:

7 x 0.20mm (TC/BC/CCA/TCCA)

Rip Cord:

Cotton Wire

Jacket:

Type

PVC

Diameter

3.10mm


Electrical Properties :

Temperature Rating

(-20℃ ~ +60℃)

Operating Voltage

300 Volts max

Capacitance

45pf/ft nom.

Impedance

40 Ohms nom.

DC Resistance

16.5 Ohms/M' at 20℃


Order Informations :

Package

Inquired Length on Reel,Pull Box,Plastic Spool,Wooden Spool,Pallet

Delivery time

Normally 15 days after received the deposit.
