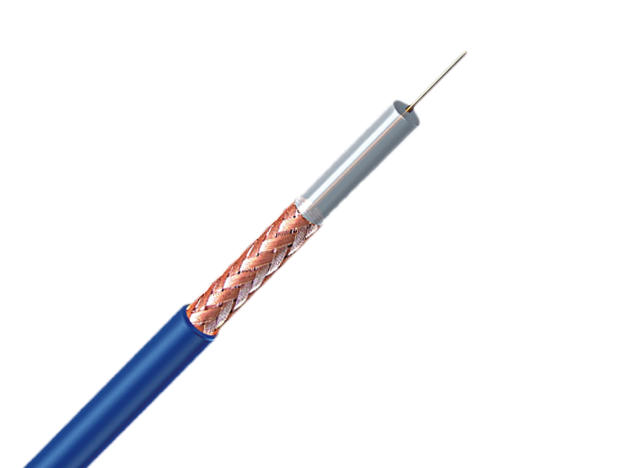

RG58 Cable
RG58 is mainly used in data transmission, security signal transmission.
1. Package: empty rolls, wooden and plastic trays
2. Certificate: CE ROHS ETL UL CPR
3. Free samples
4. Provide test report
5. Stable quality, complete testing equipment
Specification
Basic Construction
| RG58/U | RG58 A/U | RG58 C/U | ||
| Conductor | Material | BC/TC | BC/TC | BC/TC |
| Nom.Dia. | 19awg | 19*0.2mm | 19*0.18mm | |
| Dielectric | Material | PE | Foam PE | PE |
| Nom.Dia. | 2.95mm | 2.90mm | 2.95mm | |
| Shield | Material | BC/TC Braiding | BC/TC Braiding | BC/TC Braiding |
| Coverage | 95% | 95% | 95% | |
| Jacket | Material | PVC/PE | PVC/PE | PVC/PE |
| Nom.Thick. | 0.80mm | 0.80mm | 0.80mm | |
| Nom.Dia. | 4.95mm | 4.90mm | 5.08mm |
Basic Characteristics
| Nominal Impedance(Ohm) | 50±2 | ||
| Nominal Velocity Of Propagation(%) | 87 | ||
| Nominal Capacitance(Pf/m) | 55±3.0 | ||
| Sparker Test(Vac) | 2500 | ||
| Srl(Db) | 30-470 | ≥20 | |
| 470-1000 | ≥18 | ||
|
Attenuation [68°f(20℃)] |
Frequency(Mhz) | Maximum(Db/100ft) | Maximum(Db/100m) |
| 50 | 3.90 | 12.80 | |
| 100 | 5.05 | 16.57 | |
| 200 | 8.20 | 26.90 | |
| 400 | 9.60 | 31.50 | |
| 500 | 119.0 | 39.04 | |
| 700 | 17.00 | 55.77 | |
| 900 | 18.00 | 59.02 | |
| 1000 | 19.80 | 64.96 | |
