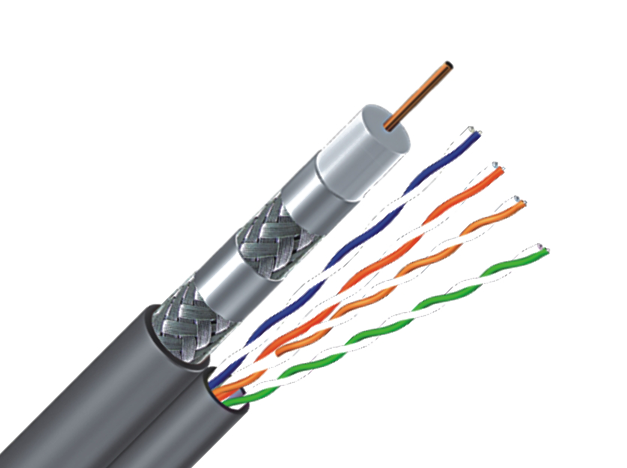

RG6+CAT5e Cable
1. Package: wooden and plastic trays, PULL BOX
2. Certificate: CE ROHS ETL UL CPR
3. Free samples
4. Provide test report
5. Stable quality, complete testing equipment
Specification
Basic Construction
|
|
RG6 | CAT5e | |
| Conductor | Material | CCS/BC | BC |
| Nom.Dia. | 1.02±0.01mm | 0.50±0.01mm | |
| Dielectric | Material | Foam PE | HDPE |
| Nom.Dia. | 4.57±0.10mm | 0.90±0.03mm | |
| Shield | Material | Al Foil+Al Braiding | / |
| Coverage | 95% | / | |
| Jacket | Material | PVC | PVC |
| Nom.Dia. | 6.8±0.10mm | 5.0±0.10mm | |
| Power Pair | Material | / | / |
| Nom.Dia. | / | / | |
Basic Characteristics
| Nominal Impedance(Ohm) | 75±3 | 100±15 | |||
| Nominal Velocity Of Propagation(%) | 83% | 69% | |||
| Nominal Capacitance(Pf/m) | 53.1 | 5.6 | |||
|
Attenuation [68°f(20℃)] |
RG6 | CAT5e | |||
| Frequency(Mhz) | Maximum (Db/100m) | Frequency(Mhz) | Maximum (Db/100m) | ||
| 5 | 2.20 | 1.0 | 2.0 | ||
| 55 | 5.25 | 4.0 | 4.1 | ||
| 211 | 9.42 | 10.0 | 6.5 | ||
| 300 | 11.25 | 20.0 | 9.3 | ||
| 400 | 13.12 | 25.0 | 10.4 | ||
| 550 | 15.45 | 31.25 | 11.7 | ||
| 750 | 18.34 | 62.5 | 17.0 | ||
| 1000 | 21.46 | 100 | 22 | ||
