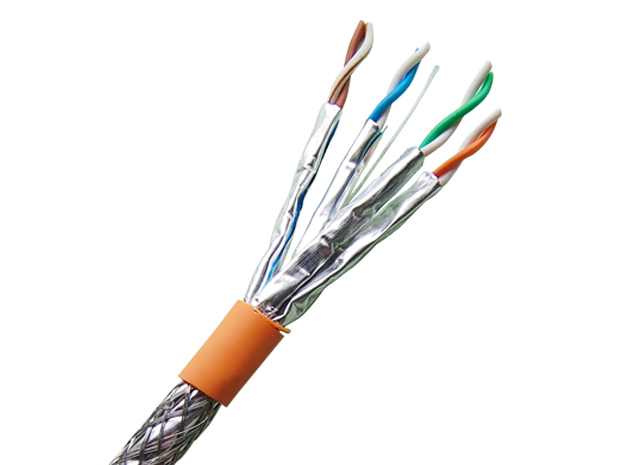

SFTP CAT7 is mainly used for Internet data transmission
1. Package: wooden and plastic trays, PULL BOX
2. Certificate: CE ROHS ETL UL CPR
3. Free samples
4. Provide test report
5. Stable quality, complete testing equipment
Specification
Center Conductor | 0.58mm Copper*2*4 Pairs |
Dielectric | 1.350±0.05mmPE |
Inner Screening | Aluminum Foil |
Jacket | PVC/LSZH |
Nom.Thick | 0.55±0.05mm |
Nom.Od(Mm) | 7.9±0.5mm |
Frequency(Mhz) | Return Loss (Db/100m) | Attenuation (Db/100m) | Next(Db/100m) | Phase Delay(Ns/100m) | Psnext(Db/100m) | Elfext(Db/100m) | Pselfext(Db/100m) |
1 | 20.00 | 2.0 | 78.0 | 570 | 75.0 | 78.0 | 75.0 |
4 | 23.00 | 3.74 | 78.0 | 552 | 75.0 | 78.0 | 75.0 |
8 | 24.50 | 5.24 | 78.0 | 546.7 | 75.0 | 75.9 | 72.9 |
10 | 25.00 | 5.86 | 78.0 | 545.4 | 75.0 | 74.0 | 71.0 |
16 | 25.00 | 7.41 | 78.0 | 543 | 75.0 | 69.9 | 66.9 |
20 | 25.00 | 8.29 | 78.0 | 542 | 75.0 | 68.0 | 65.0 |
25 | 24.30 | 9.29 | 78.0 | 541.2 | 75.0 | 66.0 | 63.0 |
31.25 | 23.60 | 10.41 | 78.0 | 540.4 | 75.0 | 64.1 | 61.1 |
62.5 | 21.50 | 14.88 | 75.5 | 538.6 | 72.5 | 58.1 | 55.1 |
100 | 20.10 | 19.02 | 72.4 | 537.6 | 69.4 | 54.0 | 51.0 |
200 | 18.00 | 27.47 | 67.9 | 536.5 | 64.9 | 48.0 | 45.0 |
250 | 17.3 | 30.97 | 66.4 | 536.3 | 63.4 | 46.0 | 43.0 |
300 | 17.3 | 34.19 | 65.2 | 536.1 | 62.2 | 44.5 | 41.5 |
