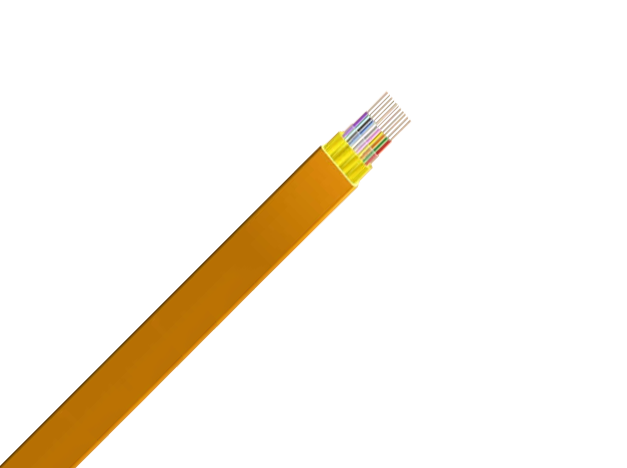

Indoor Fiber Optical Cable
Optical cables are mainly used in the transmission of optical signals in telecommunications networks
1. Package: wood drum
2. Certificate: CE ROHS ETL UL CPR
3. Free samples
4. Provide test report
5. Stable quality, complete testing equipment
Specification
Fiber Optic Cable Parameter
| Fiber Counts | Fiber Size (Mm) | Fiber Weight (Kg/Km) | Permissible Tensile Force（n） | Permissible Pressure （n/100mm） | Min Bend Radius(Mm) | Running Temperature（℃） | |||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 1 | 1.6 | 2.0 | 30 | 60 | - | - | 50 | 30 | -20~+60 |
| 1 |
1.8 |
2.8 | 40 | 80 | - | - | 50 | 30 | -20~+60 |
| 1 | 2.0 | 3.5 | 60 | 100 | 100 | 500 | 50 | 30 | -20~+60 |
| 1 | 2.4 | 4.5 | 60 | 100 | 100 | 500 | 50 | 30 | -20~+60 |
| 1 | 2.8 | 5.8 | 80 | 150 | 100 | 500 | 60 | 30 | -20~+60 |
| 1 | 3.0 | 6.5 | 80 | 150 | 100 | 500 | 60 | 30 | -20~+60 |
| 2 | 6.0 | 25.3 | 200 | 400 | 200 | 1000 | 20d | 10d | -20~+60 |
| 2 | 7.2 | 30.0 | 250 | 500 | 200 | 1000 | 20d | 10d | -20~+60 |
