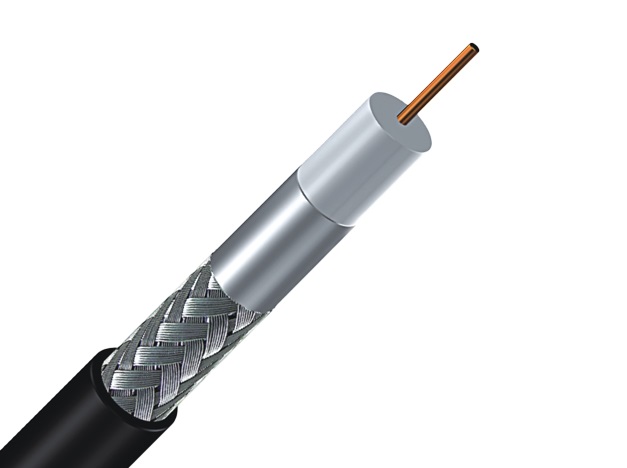

STANDARD SHIELD

1. Package: empty rolls, wooden and plastic trays, and pull -boxes.

2. Certificate: CE ROHS ETL UL CPR

3. Free samples

4. Provide test report

5. Stable quality, complete testing equipment

Specification

Basic Construction

Basic Characteristics

Nominal Impedance(ohm)		75±3
Nominal Velocity of propagation(%)		85
Nominal Capacitance(pf/m)		85
Spark Test(VAC)		2500
SRL(dB)		20	20
Attenuation[68°F(20℃)]	Frequency（MHz）	Maximum(dB/100ft)	Maximum(dB/100m)
	5	0.86	2.82
	55	2.05	6.73
	187	3.6	11.81
	300	4.45	14.6
	450	5.4	17.72
	600	6.2	20.34
	750	6.97	22.87
	865	7.52	24.67
	1000	8.12	26.64
