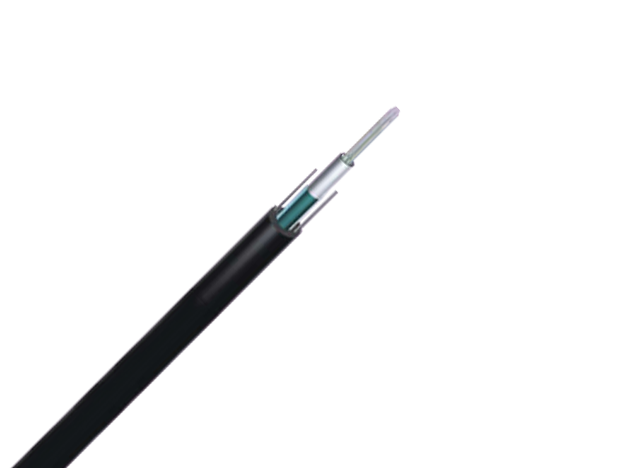

Optical cables are mainly used in the transmission of optical signals in telecommunications networks

1. Package: wood drum

2. Certificate: CE ROHS ETL UL CPR

3. Free samples

4. Provide test report

5. Stable quality, complete testing equipment

Specification

Temperature Range

Transport/Storage Temp	Installation Temp	Operation Temp
-40℃~+70℃	-30℃~+50℃	-40℃~+70℃

Structural Characteristic

Fiber Count	2~48
Loose Tube	Colored Fiber In Pbt Loose Tube, Filled With Fiber Gel
Strength Member	Two Parallel Steel Wires
Corrugated Steel-Plastic Tape	Ensures Nice Moisture Proof And Side Pressure Resisting Capability Of Cable.
Sheath	Polyethylene(PE)

Technical Data

Fiber Count	Cable Outer Dia (Mm)	Cable Weight (Kg/Km)	Min.Bending Radius(Mm)		Permissible Tensile Force（n）		Permissible Pressure Force（n/100mm）
Fiber Count	Cable Outer Dia (Mm)	Cable Weight (Kg/Km)	Static	Dynamic	Short Term	Long Term	Short Term	Long Term
2-12	8	70	10d	20d	1500	600	1000	600
14-24	8.7	81	10d	20d	1500	600	1000	600
26-36	9.4	95	10d	20d	1500	600	1000	600
38-48	10	106	10d	20d	1500	600	1000	600
Note："d" Is Cable Diameter
