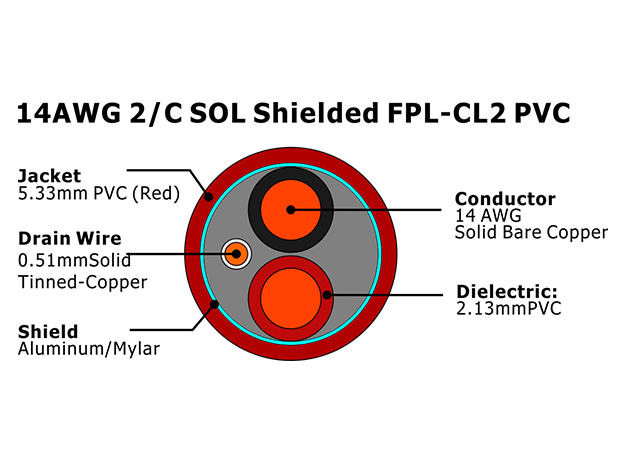

14AWG 2C SOL Shielded FPL-CL2 PVC


1.Model:UL Fire alarm cable - MD

2.Categories:Fire Alarm Cable

3.Certificates:UL, ETL, CE,CPR, RoHS

4.Length:100m,500m,500ft,1000ft

5.Packing:roll, wooden spool, carton, pallet

6.MOQ:10KM

7.Delivery time:Normally 15 working days

8.Port of Loading:NINGBO, SHANGHAI

9.Term of payment:T/T, L/C at sight, D/P at sight






Product info


Conductor:

14 AWG Solid Bare Copper

Nom.Dia:

0.064''(1.63mm)

Dielectric:

Type:

FPL-PVC

Dia.over Dielectric

0.084±0.004''nom.(2.13mm±0.10mm)

Drain Wire:

 0.51mm Solid Tinned-Copper

Shield :

0.001"(0.025mm) thick Aluminum/Mylar

Color Code:

1.black 2.Red

Jacket:

Type:

FPL-PVC

Color:

Red

Dia.over Jacket:

0.210"±0.006''(5.33±0.15mm)

Electrical Properties :

Temperature Rating

-20℃ ~+60℃

Operating Voltage

300 Volts max

Capacitance

52 pf/ft nom

Impedance

29 Ohms nom

DC Resistance

2.54 Ohms/M' at 20℃

Order Information:

Package

100M/Reel,200M/Reel,500M/Wooden Spool

Delivery time

Normally 15 days after received the deposit.



Key Features
These products are solid conductor or multi conductor cables that come in a shielded and unshielded version.
The variations are PVC, Plenum, shielded and unshielded which automatically puts this cable in at least
4 types of different applications. Standard ways of asking for it would be fire alarm cable, shielded fire alarm cable, FPLR cable
and FPLP cable which stated for Riser and Plenum.
Applications
▶ Hotels ▶ Theatres and cinemas ▶ Museums ▶ Hospitals ▶ Shopping centres
▶ Skyscrapers ▶ Offices ▶ Schools ▶ Airports ▶ Undergrounds and tunnels
▶ Railways stations ▶ Computer centres ▶ Alarm systems ▶ Traffic control systems
▶ Fire fighting system

Why chose us as your partner?
● Price: You can get ultimate reasonable factory price of the fire alarm cable itself from us!
● Service: You will enjoy best service from our export team on price for import and export, shipping time, documents and custom policy,   which will save cost ultimately  and create biggest value for you.
Quality: Guarantee:You will received 100% quality pass testing before sending to our customers;   also we are responsible for all products during it’s normal lifetime.
