Specification

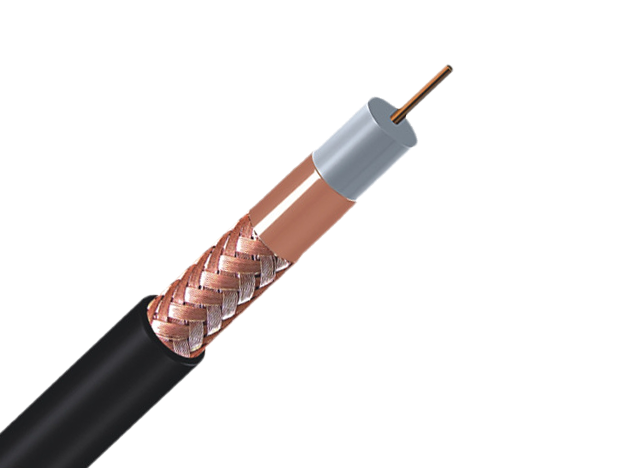

Basic Construction
| Conductor | Material | BC |
| Nom.Dia. | 1.00±0.01mm | |
| Dielectric | Material | Foam PE |
| Nom.Dia. | 4.60±0.10mm | |
| Shield | Material | Cu/Al Foil + Bc Braiding |
| Coverage | 40%-95% | |
| Jacket | Material | PVC |
| Nom.Thick. | / | |
| Nom.Dia. | 6.65±0.10mm |
Basic Characteristics
| Nominal Impedance(Ohm) | 75±3 | |
| Nominal Velocity Of Propagation(%) | 83 | |
| Nominal Capacitance(Pf/m) | 67 | |
| Srl(Db) | 20 | |
|
Attenuation [68°f(20℃)] Maximum (Db/100ft) |
Frequency(Mhz) | CT100 |
| 50 | 4.6 | |
| 100 | 6.5 | |
| 200 | 9.5 | |
| 400 | 12.3 | |
| 700 | 17.1 | |
| 900 | 20.1 | |
| 1000 | 21.5 | |
