Specification

Basic Construction

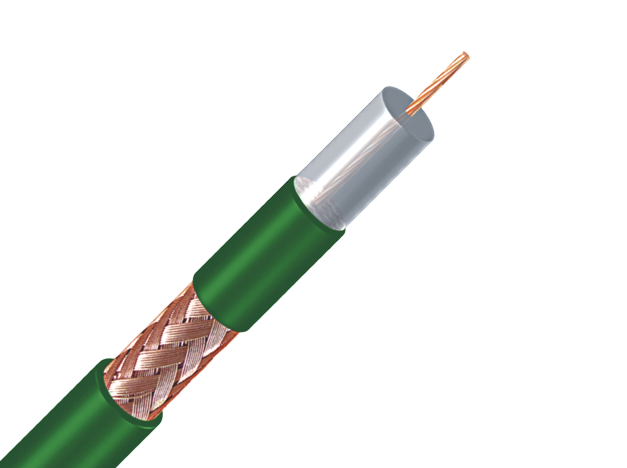

KX8
Conductor Material BC/TC
Nom.Dia. 7×0.40±0.005mm
Dielectric Material Solid PE
Nom.Dia. 7.24±0.10mm
Shield Material BC/CCA Braiding
Coverage 95%
Jacket Material PVC
Nom.Dia. 10.30±0.10mm


Basic Characteristics
Nominal Impedance(Ohm) 75±3
Nominal Velocity Of Propagation(%) 66
Nominal Capacitance(Pf/m) 67.2
Attenuation
[68°f(20℃)]
Maximum
(Db/100m)
Frequency(Mhz) KX8
10 2.3
50 4.3
100 6.6
200 9.5
400 13.8
700 19.0
900 22.3
1000 23.3
