Specification
Basic Construction

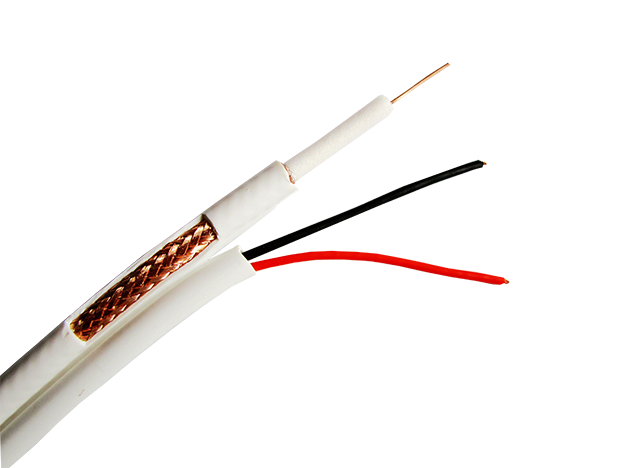

| RG59+2P Cable | ||
| Conductor | Material | BC/CCS |
| Nom.Dia. | 20awg | |
| Dielectric | Material | Foam PE |
| Nom.Dia. | 3.66mm | |
| Shield | Material | Al Foil+Al Braiding |
| Coverage | 40%-95% | |
| Jacket | Material | PVC/PE |
| Nom.Thick. | 0.80mm | |
| Nom.Dia. | 6.10mm |
Basic Characteristics
| Nominal Impedance(Ohm) | 75±3 | ||
| Nominal Velocity Of Propagation(%) | 85 | ||
| Nominal Capacitance(Pf/m) | 50 | ||
| Sparker Test(Vac) | 2500 | ||
| Srl(Db) | 20 | 20 | |
|
Attenuation [68°f(20℃)] |
Frequency(Mhz) | Maximum(Db/100ft) | Maximum(Db/100m) |
| 5 | 0.86 | 2.82 | |
| 55 | 2.05 | 6.73 | |
| 187 | 3.6 | 11.81 | |
| 300 | 4.45 | 14.6 | |
| 450 | 5.4 | 17.72 | |
| 600 | 6.2 | 20.34 | |
| 750 | 6.97 | 22.87 | |
| 865 | 7.52 | 24.67 | |
| 1000 | 8.12 | 26.64 | |
