XF-FA-325 FPLR
1.Model:UL Fire alarm cable - MD
2.Categories:Fire Alarm Cable
3.Certificates:UL, ETL, CE,CPR, RoHS
4.Length:100m,500m,500ft,1000ft
5.Packing:roll, wooden spool, carton, pallet
6.MOQ:10KM
7.Delivery time:Normally 15 working days
8.Port of Loading:NINGBO, SHANGHAI
9.Term of payment:T/T, L/C at sight, D/P at sight
Product info
|

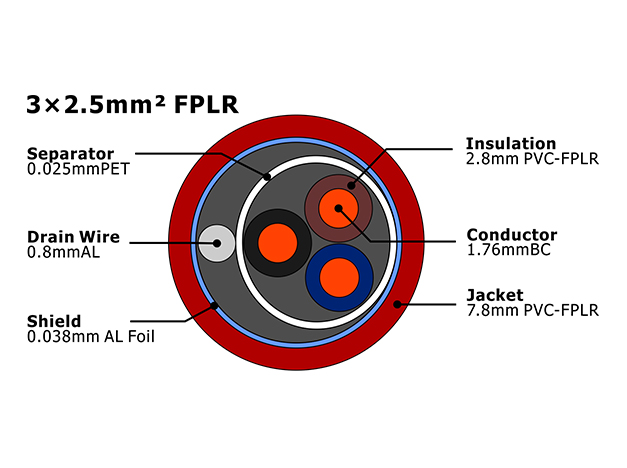

Conductor: |
||
|
Solid Bare Copper |
||
|
Insulation: |
Material： |
PVC-FPLR |
|
Dia.over Dielectric： |
0.110''nom.(2.8mm) |
|
|
Insulation Color: |
blue/brown |
|
|
Separator : |
PET Foil | |
|
Drain Wire: |
0.8mm Aluminum/TCCA |
|
|
Shield: |
Aluminum PET (100% Coverage 20% overlapping) |
|
|
Jacket: |
PVC-FPLR | |
|
Dia.over Jacket:0.307''(7.8mm) |
||
Electrical Properties :
|
Min.Conductor resistance |
17.2Ω/km |
|
Min.Insulation resistance |
300 MΩ/km |
|
Temperature Range |
-35℃～+105℃ |
|
Test voltage (rms value) |
2KV/15 min , 1KV/5min |
|
Max. Operating |
|
Standard :
ANSI/UL 1424, Cables for Power-Limited Fire-Alarm Circuits
All these cables comply to:
|
Application of insulation |
BS 7629-1-2008 |
|
Inner Conductor Diameter |
BS EN 60228 |
|
Insulation Type |
BS 50363-5 |
|
Corrosive and Acid Gas Emission |
BS EN 50267-2-1 |
|
Flame Propagation(bunched cable) |
IEC332-3/TS EN50266 |
|
Flame Propagation(single cable) |
IEC332-1/TS EN60332-1-2 |
|
Sheath |
BS 7656-6-1/LTS 3 |
Order Information:
|
Package |
100M/Reel,200M/Reel,500M/Wooden Spool |
|
Delivery time |
Normally 15 days after received the deposit. |
Similar Type:
|
|
No. of Cores/ |
Cable diameter (mm) |
Insulation diameter |
Jacket diameter (mm) |
|
XF-FA-210 FPLR |
2×1.0 |
1.13 |
2.2 |
6.2 |
|
XF-FA-215 FPLR |
2×1.5 |
1.36 |
2.4 |
6.8 |
|
XF-FA-225 FPLR |
2×2.5 |
1.76 |
2.8 |
7.6 |
|
XF-FA-310 FPLR |
3×1.0 |
1.13 |
2.2 |
6.4 |
|
XF-FA-215 FPLR |
3×1.5 |
1.36 |
2.4 |
7.0 |
|
XF-FA-225 FPLR |
3×2.5 |
1.76 |
2.8 |
7.8 |
|
XF-FA-410 FPLR |
4×1.0 |
1.13 |
2.2 |
6.9 |
|
XF-FA-415 FPLR |
4×1.5 |
1.36 |
2.4 |
7.6 |
|
XF-FA-425 FPLR |
4×2.5 |
1.76 |
2.8 |
8.5 |
|
XF-FA-515 FPLR |
5×1.5 |
1.36 |
2.4 |
8.5 |
|
XF-FA-715 FPLR |
7×1.5 |
1.36 |
2.4 |
9.6 |
Key Features
These products are solid conductor or multi conductor cables that come in a shielded and unshielded version.
The variations are PVC, Plenum, shielded and unshielded which automatically puts this cable in at least
4 types of different applications. Standard ways of asking for it would be fire alarm cable, shielded fire alarm cable, FPLR cable
and FPLP cable which stated for Riser and Plenum.
Applications
▶ Hotels ▶ Theatres and cinemas ▶ Museums ▶ Hospitals ▶ Shopping centres
▶ Skyscrapers ▶ Offices ▶ Schools ▶ Airports ▶ Undergrounds and tunnels
▶ Railways stations ▶ Computer centres ▶ Alarm systems ▶ Traffic control systems
▶ Fire fighting system
Why chose us as your partner?
● Price: You can get ultimate reasonable factory price of the fire alarm cable itself from us!
● Service: You will enjoy best service from our export team on price for import and export, shipping time, documents and custom policy, which will save cost ultimately and create biggest value for you.
● Quality: Guarantee:You will received 100% quality pass testing before sending to our customers; also we are responsible for all products during it’s normal lifetime.
