XF-A-2052022TJ

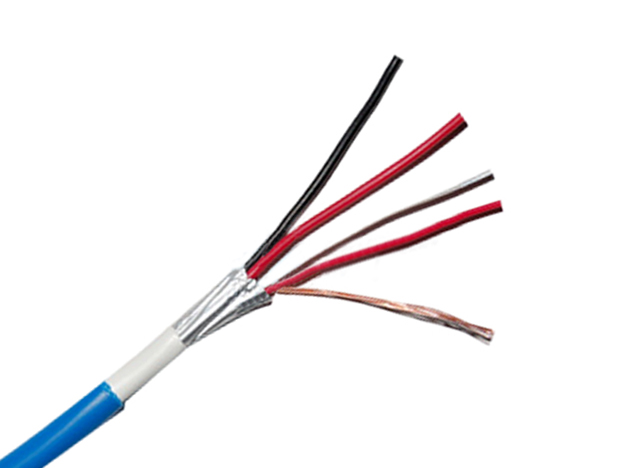

1.Model:UL Fire alarm cable - MD

2.Categories:Fire Alarm Cable

3.Certificates:UL, ETL, CE,CPR, RoHS

4.Length:100m,500m,500ft,1000ft

5.Packing:roll, wooden spool, carton, pallet

6.MOQ:10KM

7.Delivery time:Normally 15 working days

8.Port of Loading:NINGBO, SHANGHAI

9.Term of payment:T/T, L/C at sight, D/P at sight






Product info


Construction

Structure

2*0.75+6*0.22 ( 2*24*0.2+6*7*0.2) shielded,Twin Jacket

Conductor

CCA (TC,BC,TCCA are available)

Cable core

8C

Insulation

PVC

rip cord

yes

Shield

AL/foil

Drain wire

yes

Jacket

PVC , Twin Jacket

Standard packing:
100m/roll, 100m/box ; 100m/plastic spool; 300m/wooden spool

Item No.

Description

Conductor
Spec.

Insulation

Jacket

Packing

Nom.Thick(mm)

Nom.Diam.(mm)

Nom.Thick(mm)

Nom.Diam.
(mm)



XF-A-4022TJ

TC/BC/CCA/TCCA
Screened
Unscreened
Rip cord or No
Drain wire or No

2*16*0.2+2*7*0.2

1.5

1.05

4.2

5.2

Box
Coil
Drum
Paper reel
Plastic reel
Wooden reel

2*16*0.2+4*7*0.2

1.5

1.05

4.7

5.7

2*16*0.2+6*7*0.2

1.5

1.05

5.2

6.2

2*16*0.2+8*7*0.2

1.5

1.05

5.9

6.9

2*16*0.2+10*7*0.2

1.5

1.05

6.3

7.3

2*16*0.2+12*7*0.2

1.5

1.05

6.4

7.4

2*24*0.2+2*7*0.2

1.8

1.05

4.5

5.5

2*24*0.2+4*7*0.2

1.8

1.05

5

6

2*24*0.2+6*7*0.22

1.8

1.05

5.1

6.1

2*24*0.2+8*7*0.2

1.8

1.05

6.4

7.4

2*24*0.2+10*7*0.22

1.8

1.05

6.6

7.6

2*24*0.2+12*7*0.2

1.8

1.05

6.8

7.8
















Key Features
These products are solid conductor or multi conductor cables that come in a shielded and unshielded version.
The variations are PVC, Plenum, shielded and unshielded which automatically puts this cable in at least
4 types of different applications. Standard ways of asking for it would be fire alarm cable, shielded fire alarm cable, FPLR cable
and FPLP cable which stated for Riser and Plenum.
Applications
▶ Hotels ▶ Theatres and cinemas ▶ Museums ▶ Hospitals ▶ Shopping centres
▶ Skyscrapers ▶ Offices ▶ Schools ▶ Airports ▶ Undergrounds and tunnels
▶ Railways stations ▶ Computer centres ▶ Alarm systems ▶ Traffic control systems
▶ Fire fighting system

Why chose us as your partner?
● Price: You can get ultimate reasonable factory price of the fire alarm cable itself from us!
● Service: You will enjoy best service from our export team on price for import and export, shipping time, documents and custom policy,   which will save cost ultimately  and create biggest value for you.
Quality: Guarantee:You will received 100% quality pass testing before sending to our customers;   also we are responsible for all products during it’s normal lifetime.
