兴发传输
XF-SASC-207512022
-
1.Model:Security Cable shielded
-
2.Categories:security alarm cable
-
3.Certificates:UL, ETL, CE,CPR, RoHS
-
4.Length:100m,305m,500m,500ft,1000ft
-
5.Packing:pull box, wooden spool, carton, pallet
-
6.MOQ:10KM
-
7.Delivery time:Normally 15 working days
-
8.Port of Loading:NINGBO, SHANGHAI
-
9.Term of payment:T/T, L/C at sight, D/P at sight
Product info

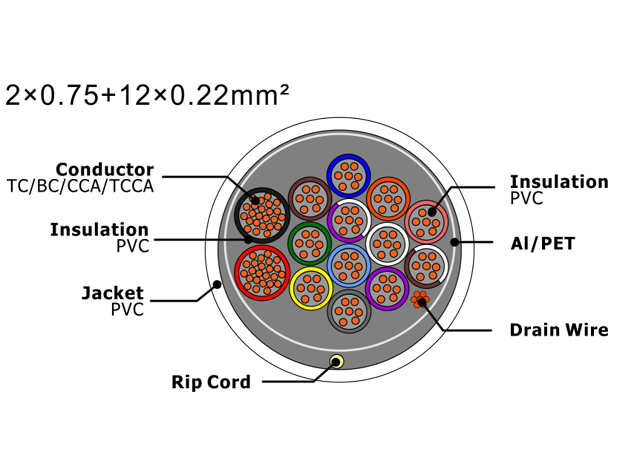

XF-SASC-2075120222×0.75+12×0.22mm² Security Alarm Cable
Conductor: Stranded or solid Conductor
Material: Copper, Tinned Copper, CCA, TCCA
Insulation: PVC
Drain Wire: Stranded or solid Rip Cord
Specification
1
|
Conductor: |
|
|
2×(24/0.20mm)TC/BC/CCA/TCCA |
|
|
Dielectric: |
|
|
Type |
PVC |
|
Diameter |
1.80mm |
|
Color Code: |
1.black |
|
2.Red |
|
2
|
Conductor: |
|||||||
|
12×(7/0.20mm)TC/BC/CCA/TCCA |
|||||||
|
Dielectric: |
|||||||
|
Type |
PVC |
||||||
|
Diameter |
0.9mm |
||||||
|
Color Code: |
1.black |
2.Red |
3.yellow |
4.green |
5.brown |
6.blue |
|
|
7.White |
8.orange |
9.Purple |
10.Grey |
11.Pink |
12.true color |
||
|
Drain Wire |
7x0.20mm TC/BC/CCA/TCCA |
||||||
|
Shield: |
Aluminum Foil |
||||||
|
Rip Cord |
Cotton Wire |
||||||
|
Jacket: |
Type |
PVC |
|||||
|
Diameter |
6.4mm |
||||||
Application:
Wiring Burglar & Security alarms, public address systems,intercoms, telephone stations,speakers,instrumentation,
control and other low voltage circuits that are power limited.
Order Informations :
|
Package |
Inquired Length on Reel,Pull Box,Plastic Spool,Wooden Spool,Pallet |
|
Delivery time |
Normally 15 days after received the deposit. |
